Tanks Inc PA-2 Fuel Injection In Tank Pump Kit Up To 450 Horse
Tanks Inc PA-2 Fuel Injection In Tank Pump Kit Up To 450 Horsepower
Convert Your Carbureted Fuel Tank To Fuel Injection!

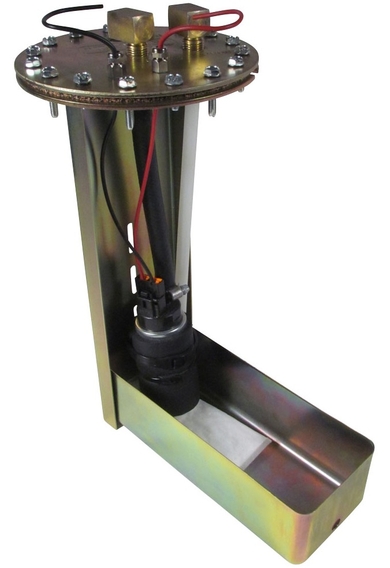

In-Tank Fuel Pump Module - PA-Series
This kit gives you everything that you need to install an internal fuel pump into nearly any tank.
The PA Series fuel pump kit features a reservoir tray that eliminates fuel pump starvation that is common on non-baffled tanks.
A properly installed internal fuel pump will essentially eliminate any issues that are common on external fuel pumps such as vapor lock and cavitation.
This Fuel Pump Kit Is For Fuel Injection ,Holley, F.A.S.T., Fitech, Edelbrock, ETC.
In-Tank Fuel Pump Module - PA-Series PA-2 Any Aftermarket Fuel Injection Kit
- Made in the USA
- Heavy 10 gauge no-warp mounting plate
- 1/4" NPT Supply and Return Line
- Barbed Vent Fitting
- Oven brazed fittings
- 40-100 PSI
- In-tank wire harness
- Genuine Walbro Fuel Pumps
Pump Flow Rates:
GM TBI 109 Liter Per Hour Pump For Up To 300 Horsepower
- 29 GPH @ 12 PSI
PA-2 Deluxe 190 Liter Per Hour Pump For Up To 450 Horsepower
- 54 GPH @ 40 PSI
- 50 GPH @ 50 PSI
- 48 GPH @ 60 PSI
PA-4 High Flow 250 Liter Per Hour Pump For Up To 600 Horsepower
- 68 GPH @ 40 PSI
- 65 GPH @ 50 PSI
- 62 GPH @ 60 PSI
PA-6 High Performance 400Liter Per Hour Pump (500 - 1000 Horsepower)
- 106 GPH @ 40 PSI
- 99 GPH @ 50 PSI
- 91 GPH @ 60 PSI
NOTE: All Flow Rates Are At 13.5 Volts
The PA-Series Fuel Pump Module is designed to be used in many of our die-stamped alloy-coated and stainless steel gas tanks that have factory-installed reservoir trays. The tray is an absolute necessity for fuel-injection in order to prevent fuel starvation when accelerating and cornering.
We use high-performance pumps in all of our fuel injection modules, and we offer four different operating ranges in order to supply up to approximately 1000 horsepower. The internal wiring harness, supply line, return line, filter sock and insulator sleeve are included. (The gasket and screws with o-rings are not included with the pump because we include gaskets and screws with our tanks.)
The heavy 10-gauge no-warp mounting plate contains fittings for the supply, the return, the vent and the electrical connector. It is yellow-zinc plated to prevent corrosion.
