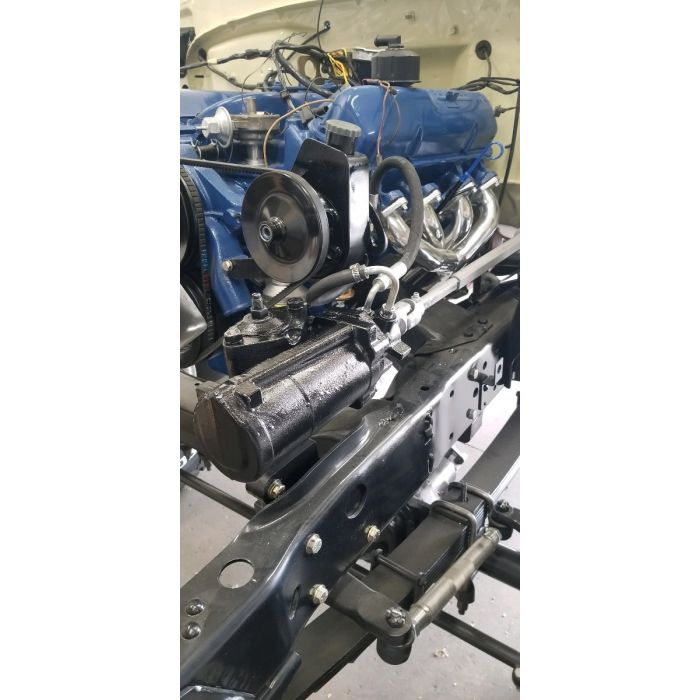

Ford F100 to F350 4 Wheel Drive 1965-79 Power Steering Kit
Special Price $2,099.00 Regular Price $2,399.00
SKU
F100-350-4X4-PS-KIT
Ford F100 to F350 4 Wheel Drive 1965-79 Power Steering Conversion Kit
Take Control Of Your Truck!!
-
Ford power steering gear box 16:1 ratio
-
Everything from the column to the steering arm on the axle (Intermediate shaft, gear box, Pittman arm, & custom adjustable drag link)
-
Bolt on bracket to mount gear to frame
-
Includes all required hardware
-
Factory style hoses
1967 - 1977 Ford F-250 (HI-Boy) 4x4 Power Steering Conversion
SS steering developed 1967-77 f250 high boy power steering conversion kit over 20 years ago. And have continued R&D on it ever since then.
Using modern steering technology/ knowledge/ components and adapting them to a bolt on kit using the best components available on the market today, this kit it will convert a non-power manual steering F250 high boy to power steering or eliminating linkage style power steering, which is a weak, leaky problem prone mess.
This design allows for complete bolt on, no drilling, welding or fabrication needed for installation
Add-Ons
SS Heavy Duty designed tie rod assembly replaces the hard-to-find factory tie rod on your 1967-77 f250 4x4 highboy.
INCLUDES: Tie Rod, Two Tie Rod ends
Drag Link Reversal insert allows proper drag link angle up to 4in lift. Drilling/milling required
INCLUDES 1x Steel insert
(Pump kit sold separately. Order for appropriate engine)
Pictures are for illustrated purposes only, product may not look exactly as pictured.
SS Steering Systems power steering Pump kit was developed for the older ford series engines. We use the popular Saginaw power steering pump that has more flow, pressure and is quieter than the original ford pump. Our mounting brackets are C.N.C. Plasma cut and designed to align with existing mounting holes. This kit works with or without factory air conditioning and includes all new pulley, hardware, and custom JIC hoses.
This Kit includes:
-
1 Remanufactured steering Pump
-
1 New Reservoir cap
-
1 New Pulley
-
1 Belt
-
1 Pulley installation tool
-
1 Mounting Bracket
-
1 Support Strap
-
1 High Pressure Hose
-
1 Return Hose W/Clamps
-
1 Hardware
-
1 Detailed Installation Instructions
SPECIAL NOTE: Non-Ford (OEM) water pumps may take some shimming and grinding to bracket for proper fit.
Dual groove water pump and triple grove crank pulley required. See add-ons for pulleys
Early 352’s with single pulley cast to damper will need add-on Vibration damper with 3 bolt mounting
| year make model | 1967 - 1977 Ford F-250 (HI-Boy) 4x4 Power Steering Conversion |
|---|---|
| Manufacturer | SPEED SHOP |
