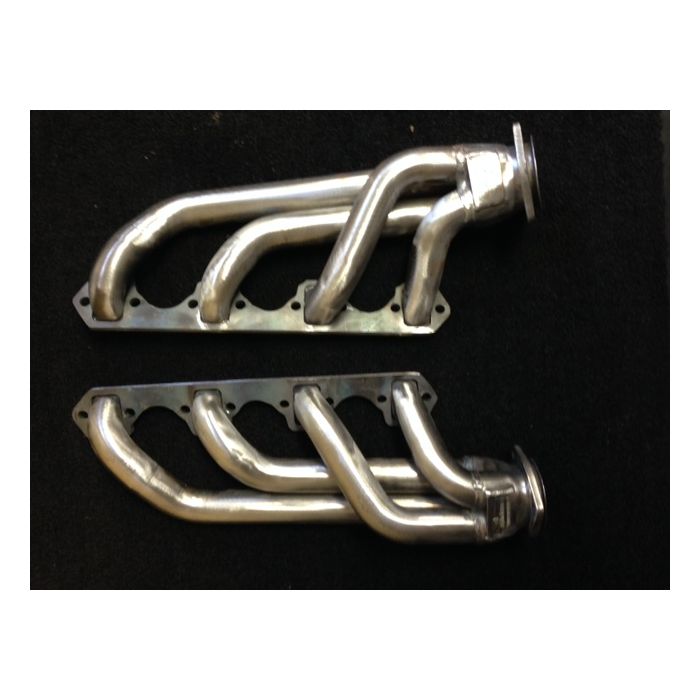

Sanderson Headers FF3FM-P Small Block Ford w/Fatman

The FF3FM-P header set is primarily designed for use with  Fatman Fabrications rack and pinion front ends. The FF3FM features excellent spark plug and ground clearance, plus big performance gains or factory exhaust manifolds.

NOTE: Will not fit chassis with shock towers

Comes with all hardware necessary for installation.

SPECIFICATIONS:

Engine : Small Block Ford 289-302
Primary Tube Diameter : 1½"
Collector Diameter : 2½"
Weight : 15 LBS / 6.8 KGS

FEATURES:

    * 16-Gauge Primary and Collector Tube Thickness
    * 3/8" Thick Flange
    * Patented Flange Design Requires NO Gaskets
    * Tightest Fitting Header Available Anywhere!
    * Made in the USA

INCLUDES:

    * Header Bolt Set
    * Angle Collector Reducer Set


OPTIONS:

    * Our Aluminized Ceramic Coating is available and RECOMMENDED on all Sanderson Headers. We apply a multi-layer inside and outside silver ceramic coating in-house to meet our high standards of quality, and polish the coated header to a high luster. This coating provides aerospace and military technology to your vehicle to control the heat in your engine bay, improve cylinder scavenging of exhaust gases, and increase the longevity of your header investment.

WARRANTY:

Limited 5-Year Warranty

DIMENSIONS:

When sitting in driver's seat and engine in front of you, the LEFT header would be the Driver's Side on LH drive vehicles; coincidently, means the RIGHT header is on the passenger side. See the detail image above left that describes engine sides.
