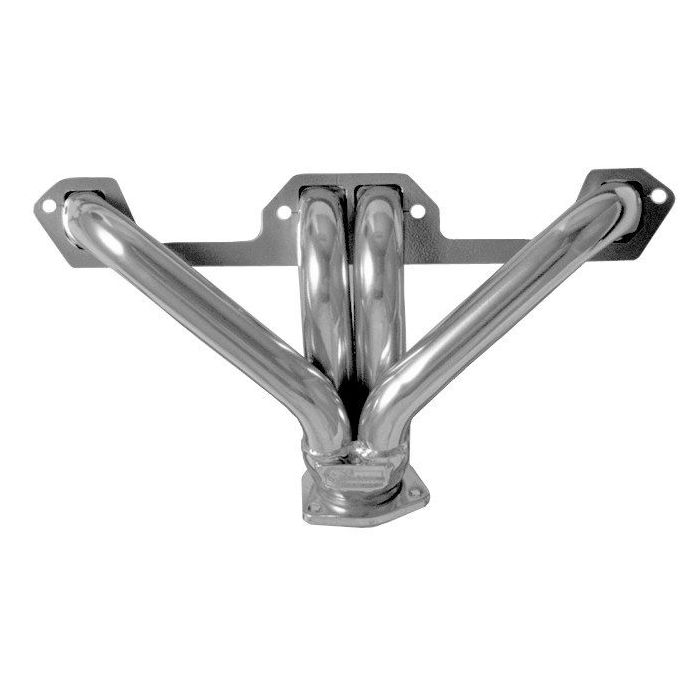

Sanderson Headers DD1-SEC Small Block Chrysler V8 Blockhugger

Sanderson Headers DD1-SEC The DD1 header fits small block Chrysler (318-360) V8 engines in chassis that do not have a cross member directly under the center of the engine, or a steering box that is within 3" of the motor. The DD1 will fit any rack and pinion or Mustang style steering setup.

This is a perfect fit for Chrysler "B" and "C" chassis, and also a good fit in 80's Dodge RAM D50 series pickups.

Comes with all hardware necessary for installation.

SPECIFICATIONS:

Engine : Small Block Chrysler 273-360 V8
Primary Tube Diameter : 1-7/8"
Collector Diameter : 3"
Weight : 16 LBS / 7.26 KGS

FEATURES:

    * 16-Gauge Primary and Collector Tube Thickness
    * 3/8" Thick Flange
    * Patented Flange Design Requires NO Gaskets
    * Tightest Fitting Header Available Anywhere!
    * Made in the USA

INCLUDES:

    * Header Bolt Set
    * Angle Collector Reducer Set

OPTIONS:

    * Our Aluminized Ceramic Coating is available and RECOMMENDED on all Sanderson Headers. We apply a multi-layer inside and outside silver ceramic coating in-house to meet our high standards of quality, and polish the coated header to a high luster. This coating provides aerospace and military technology to your vehicle to control the heat in your engine bay, improve cylinder scavenging of exhaust gases, and increase the longevity of your header investment.

WARRANTY:

Limited 5-Year

DIMENSIONS:

When sitting in driver's seat and engine in front of you, the LEFT header would be the Driver's Side on LH drive vehicles; coincidently, means the RIGHT header is on the passenger side. See the detail image above left that describes engine sides.
