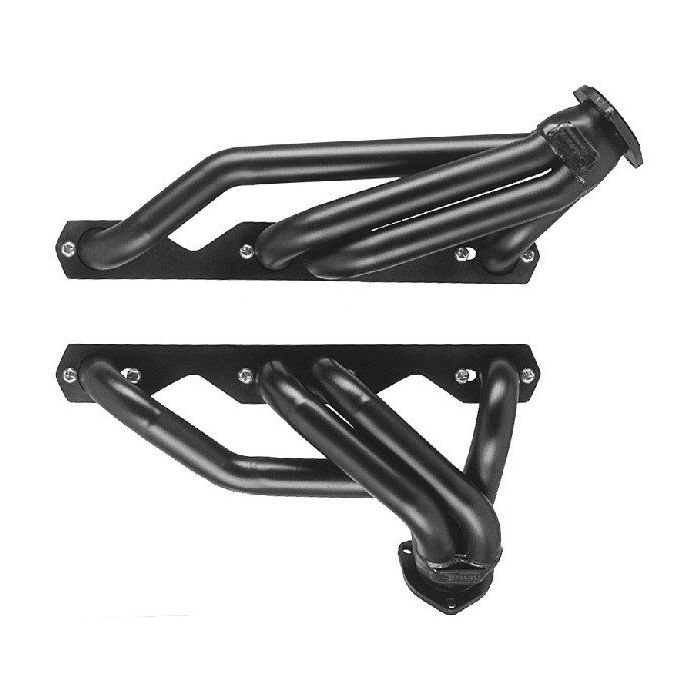

Sanderson Headers CC12-P Small Block Chevy Blockhugger

CC12-P Header Set, Small Block Chevy, Chevelle El Camino

The CC12 header set fits small block Chevrolet engines in 1964 -1977 Chevelle and El Camino applications. This header fits vehicles using a manual transmission with factory shifter linkage. The driver’s side header collector tucks down and under toward the oil pan in front of the oil filter to clear the factory Z-bar and shifter linkage. Shorter “header” spark plugs are recommended.

Includes all hardware necessary for installation.

SPECIFICATIONS:

• Engine: Small Block Chevy 265-400
• Primary Tube Diameter: 1-1/2″
• Collector Diameter: 2.5″

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8″ Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

OPTIONS:

Our Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. To meet high standards of quality, We apply a multi-layer inside and outside aluminized ceramic coating in-house and then polish the coating to a high luster. This aerospace and military-grade technology adds excellent protection to your headers while offering the benefit of thermal control in your engine bay. It also improves cylinder scavenging of exhaust gases and increases the longevity of your header investment.

What is a D-Port?

We often see confusion in what is considered a D-Port cylinder head for small block Chevrolet engine applications. The problem originates in the technical understanding of what constitutes a true D-PORT versus a D-shape. The D-Port roof extends well above the centerline of the exhaust port, whereas the D-shaped port fits nicely inside what is deemed a standard port dimension. As shown in the graphic below, the d-shape easily fits within the common round or square port flange opening.

Where other header manufacturers use a typical flat header flange and gasket for sealing, the patented raised flange design of the Sanderson Headers requires different flanges for different small block Chevy exhaust port shapes. Other header flanges will often block the top of the exhaust port on D-port heads. When using a Sanderson D-Port flange the port is not blocked. However, using the wrong flange with a Sanderson header may expose open areas that will not seal, creating an exhaust leak.

Examples:

1. Using a D-port flange on a common GM head (standard round, square, or D-shaped port), the header port flange open is larger (taller opening) than the sealing area around the exhaust port (additional details below, comparing two BRODIX Track 1® cylinder heads)
2. Using a standard Sanderson header flange on a D-port cylinder head has a similar problem, where the cylinder head exhaust port opening may extend above the raised flange sealing area, again creating the possibility of an exhaust leak.

Here is an example of a small block Chevrolet D-port cylinder head that requires the Sanderson D-Port header flange.

WARRANTY:

Limited 5-Year

Sanderson Street Rod Headers strives to supply our customers with the highest quality parts and services available in the street rod industry. In keeping with this, we warrant and will repair or replace, at our option after an inspection in our facility, any of our products that are found by us to have failed due to defects in either material or workmanship. This warranty is activated by the return of the Warranty Card enclosed with every pair of headers and is effective for FIVE YEARS * from the date of purchase as indicated on the original invoice.

This Warranty does not cover products that fail due to improper motor tuning, alteration, disassembly, or damage caused by racing, misuse, neglect, abuse, improper installation, and/or accident, or when used on applications for which they were not designed or approved. We are specifically not responsible for the costs of removal, installation, transportation, destruction of other components, inconvenience, loss of time, or other personal damages, or for any other associated costs including the application of aftermarket coatings applied by others. Sanderson Street Rod Headers shall not be liable for any and all consequential damages occasioned by the breach of any written or implied warranty pertaining to this sale in excess of the purchase price of the product(s) as found on the original invoice.
