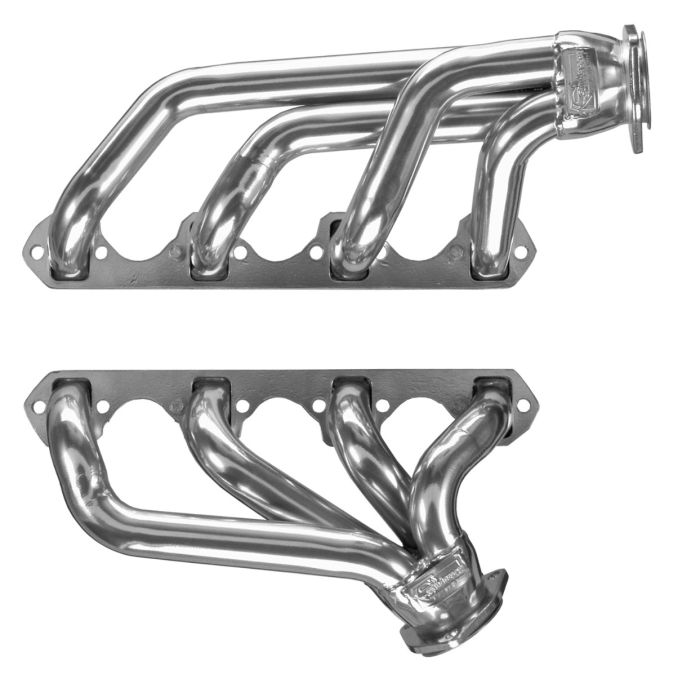

Sanderson Headers FF3GTS-P Small Block Ford Mustang GT40

The FF3GTS-P header set is primarily designed for 1964-1973 Ford Mustang applications using RHS AFR GT40 Angle Plug cylinder heads, but will also work in other Ford compacts that were built on the Mustang platform. The FF3GTS features excellent spark plug and ground clearance, plus big performance gains or factory exhaust manifolds. The FF3GTS will also work with stock cylinder heads.

NOTE: Please specify whether you have a 289 or 302 or 351W engine on the comments form during checkout.  Also please specify the cylinder head type, GT40 or GT40P.  Using Ford AOD Trans YES or NO.

Comes with all hardware necessary for installation.

SPECIFICATIONS:

Engine : Small Block Ford 289-302-351W (w/GT40 cylinder heads)
Primary Tube Diameter : 1½"
Collector Diameter : 2½"
Weight : 15 LBS / 6.8 KGS

FEATURES:

    * 16-Gauge Primary and Collector Tube Thickness
    * 3/8" Thick Flange
    * Patented Flange Design Requires NO Gaskets
    * Tightest Fitting Header Available Anywhere!
    * Made in the USA

INCLUDES:

    * Header Bolt Set
    * Angle Collector Reducer Set


OPTIONS:

    * Our Aluminized Ceramic Coating is available and RECOMMENDED on all Sanderson Headers. We apply a multi-layer inside and outside silver ceramic coating in-house to meet our high standards of quality, and polish the coated header to a high luster. This coating provides aerospace and military technology to your vehicle to control the heat in your engine bay, improve cylinder scavenging of exhaust gases, and increase the longevity of your header investment.


WARRANTY:

Limited 5-Year Warranty


DIMENSIONS:

When sitting in driver's seat and engine in front of you, the LEFT header would be the Driver's Side on LH drive vehicles; coincidently, means the RIGHT header is on the passenger side. See the detail image above left that describes engine sides.
