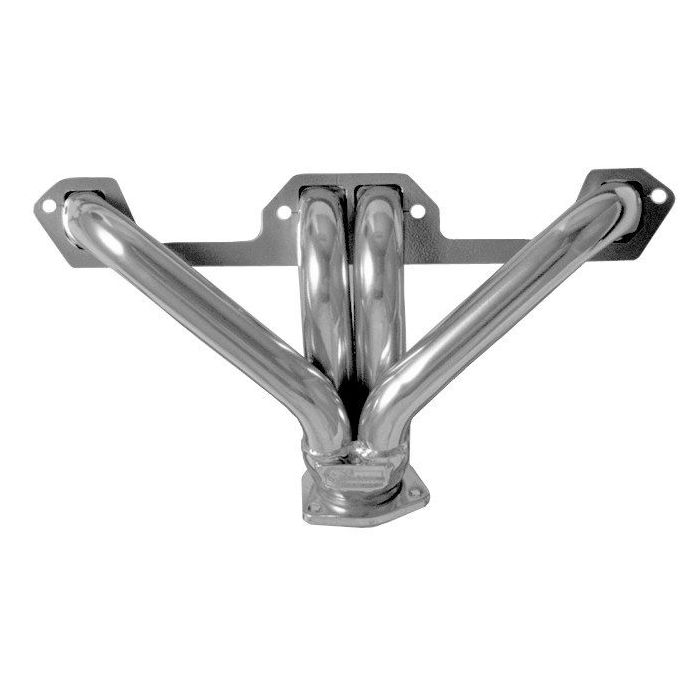

Sanderson Headers DD1-BEC Small Block Chrysler V8 Blockhugger

The DD1-BEC header set is designed to fit small block Chrysler (273-360 LA) V8 engines in 1932-Up cars and pickup chassis that do not have a cross member directly under the center of the engine. The DD1-BEC also fits some RVs and muscle cars.

The DD1-BEC is a perfect fit for Chrysler "B" and "C" chassis.

Comes with all hardware necessary for installation.

SPECIFICATIONS:

Engine : Small Block Chrysler 273-360 V8
Primary Tube Diameter : 1-7/8"
Collector Diameter : 3"
Weight : 16 LBS / 7.26 KGS

FEATURES:

    * 16-Gauge Primary and Collector Tube Thickness
    * 3/8" Thick Flange
    * Patented Flange Design Requires NO Gaskets
    * Tightest Fitting Header Available Anywhere!
    * Made in the USA

INCLUDES:

    * Header Bolt Set
    * Angle Collector Reducer Set

OPTIONS:

    * Our Aluminized Ceramic Coating is available and RECOMMENDED on all Sanderson Headers. We apply a multi-layer inside and outside silver ceramic coating in-house to meet our high standards of quality, and polish the coated header to a high luster. This coating provides aerospace and military technology to your vehicle to control the heat in your engine bay, improve cylinder scavenging of exhaust gases, and increase the longevity of your header investment.

WARRANTY:

Limited 5-Year

DIMENSIONS:

When sitting in driver's seat and engine in front of you, the LEFT header would be the Driver's Side on LH drive vehicles; coincidently, means the RIGHT header is on the passenger side. See the detail image above left that describes engine sides.
