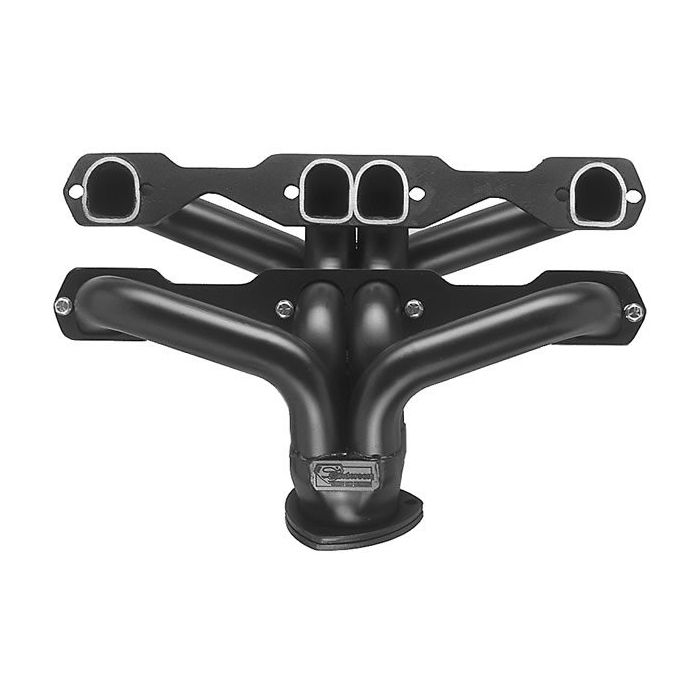

Sanderson Headers CC1DP Small Block Chevy 1927 and Up Blockhugger

CC1DP Header Set, Small Block Chevy, for D-Port Heads

The Sanderson CC1DP header set is designed for 1927 and up vehicles using small block Chevy 265–400 V8 engines with true D-port, angle plug cylinder heads such as the GM Fastburn, ZZ4, and ZZ6. Built for tight-fit applications with modern performance heads.

The CC1DP fits rack-and-pinion setups, Vega steering, and Mustang-style steering with a minimum 2″ clearance from the steering gear to the driver’s side center ports. It clears nearly all motor mount, starter, and transmission configurations. Steering shaft routing may still be required depending on your chassis layout.

NOTE: For standard angle plug heads (not D-port), use part #CC1AP. See the “What is a D-Port” info tab for help identifying your cylinder heads.

SPECIFICATIONS:

• Engine: Small Block Chevy 265–400 V8
• Primary Tube Diameter: 1-5/8″
• Collector Diameter: 2.5″

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8″ Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

Our Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. We apply a multi-layer inside-and-out aluminized ceramic coating in-house and polish it to a high luster. This aerospace and military-grade technology provides excellent heat protection, enhances cylinder scavenging, and increases the durability of your headers.

WARRANTY:

Limited 5-Year

Sanderson Street Rod Headers warrants this product against defects in materials or workmanship for five years from the date of purchase. Warranty activation requires the return of the enclosed warranty card.

Warranty excludes failures due to improper installation, motor tuning, misuse, damage, or use of thermal wraps. Labor, removal, or shipping costs are not covered.
