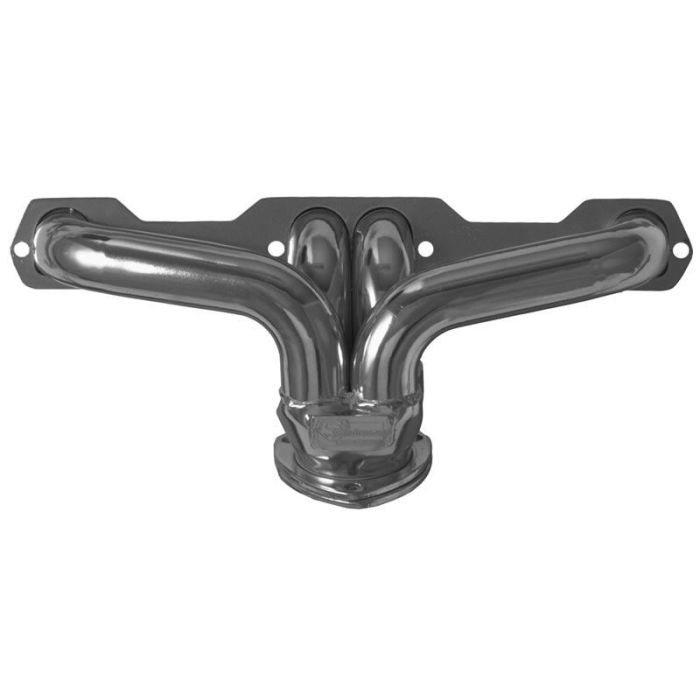

Sanderson Headers CC134 Small Block Chevy Car Blockhugger

CC134 Header Set, Small Block Chevy

The Sanderson CC134 header set is designed for 1927 and up vehicles and trucks using small block Chevy 265–400 engines. Its compact, large-tube configuration is ideal for tight engine bays requiring higher performance flow.

The CC134 fits aftermarket Mustang II, Vega, and rack-and-pinion front suspension kits, including Heidts, TCI, and Chassisworks chassis. It clears most motor mounts, tie rods, and steering rods, and is compatible with both straight and angle plug heads.

This is one of our most popular high-performance small block headers, offering a 1-3/4″ primary tube diameter and 3.0″ collector for excellent flow characteristics in a compact design. Also available for D-port heads (GM Fastburn, ZZ4, ZZ6, etc.).

SPECIFICATIONS:

• Engine: Small Block Chevy 265–400
• Primary Tube Diameter: 1-3/4″
• Collector Diameter: 3.0″

FEATURES:

• 16-Gauge Primary and Collector Tube Thickness
• 3/8″ Thick Flange
• Patented Flange Design Requires NO Gaskets
• Tightest Fitting Header Available Anywhere!
• Made in the USA

INCLUDES:

• Header Bolt Set
• Collector Reducer Set

FINISH:

Our Ceramic Coating is recommended for every vehicle application and is the default finish selection choice above. We apply a multi-layer inside-and-out aluminized ceramic coating in-house and polish it to a high luster. This aerospace and military-grade technology provides excellent heat protection, enhances cylinder scavenging, and increases the durability of your headers.

What is a D-Port?

We often see confusion in what is considered a D-Port cylinder head for small block Chevrolet engine applications. The problem originates in the technical understanding of what constitutes a true D-PORT versus a D-shape. The D-Port roof extends well above the centerline of the exhaust port, whereas the D-shaped port fits nicely inside what is deemed a standard port dimension. As shown in the graphic below, the d-shape easily fits within the common round or square port flange opening.

Where other header manufacturers use a typical flat header flange and gasket for sealing, the patented raised flange design of the Sanderson Headers requires different flanges for different small block Chevy exhaust port shapes. Other header flanges will often block the top of the exhaust port on D-port heads. When using a Sanderson D-Port flange the port is not blocked. However, using the wrong flange with a Sanderson header may expose open areas that will not seal, creating an exhaust leak.

Examples:

1. Using a D-port flange on a common GM head (standard round, square, or D-shaped port), the header port flange open is larger (taller opening) than the sealing area around the exhaust port (additional details below, comparing two BRODIX Track 1® cylinder heads)
2. Using a standard Sanderson header flange on a D-port cylinder head has a similar problem, where the cylinder head exhaust port opening may extend above the raised flange sealing area, again creating the possibility of an exhaust leak.

Here is an example of a small block Chevrolet D-port cylinder head that requires the Sanderson D-Port header flange.

WARRANTY:

Limited 5-Year

Sanderson Street Rod Headers warrants this product against defects in materials or workmanship for five years from the date of purchase. Warranty activation requires the return of the enclosed warranty card.

Warranty excludes failures due to improper installation, motor tuning, misuse, damage, or use of thermal wraps. Labor, removal, or shipping costs are not covered.
