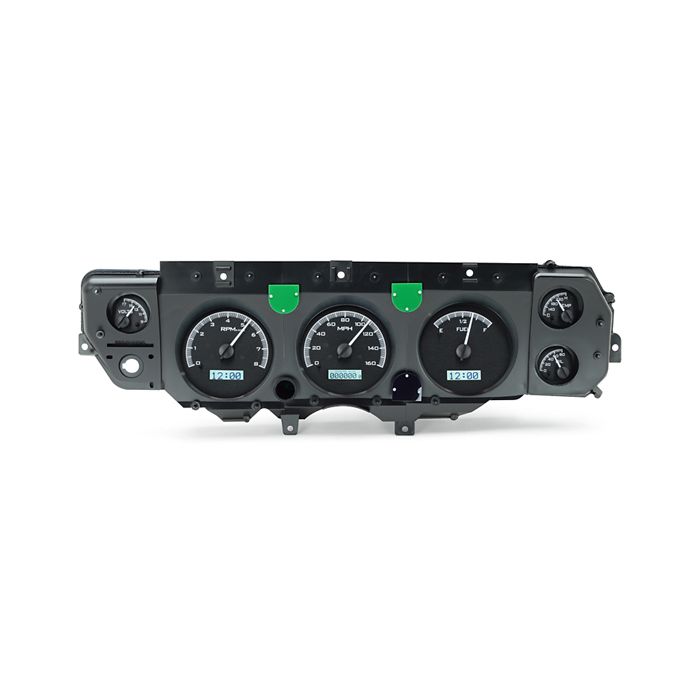

Dakota Digital VHX-70C-CVL-K-W Chevy 1970-1972 Chevelle Gauge System

Name: Dakota Digital VHX-70C-CVL-K-W Chevy 1970-1972 Chevelle Gauge System
SKU: VHX-70C-CVL-K-W
Price: 1021.25 USD
Availability: InStock

Be the first to review this product

Special Price $1,021.25 Regular Price $1,075.00

SKU

VHX-70C-CVL-K-W

Dakota Digital VHX-70C-CVL-K-W Chevy 1970-1972 Chevelle VHX System

The new VHX Systems fit directly into the stock instrument bezel of a 1970-1972 Chevy Chevelle SS without modification, adding a wealth of features to this iconic vehicle.

*Bolts into factory gauge carrier, not included. Sold Separately.

1970-72 Chevy Chevell SS/Monte Carlo/El Camino and 71 GMC Sprint VHX Instruments, Black Alloy/White

Dakota Digital VHX-70C-CVL-K-W Chevy 1970-1972 Chevelle Gauge System

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!

VHX Instrument System Features!!!!

VHX Instrument System Features

Analog Gauges

Speedometer	0 -120 MPH (optional metric version 0- 195 kmh)

Tachometer	0- 8,000 RPM

Oil Pressure	0- 80 psi

Water Temperature	100- 260ºF (optional metric version 40- 120ºC)

Fuel Level	E, 1/4, 1/2, 3/4, F

Voltmeter	9- 17 VDC

Lighting	Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays

Odometer (One time user settable, Million Mile)

Dual (A/B) Trip Meter (0- 9,999.9)

Clock (12 hour)

Performance Meters

0- 60 MPH Timer (0- 100 kmh)

1/4 mile time

1/4 mile end speed (trap speed)

High speed recall

High RPM recall

Gauges

Speedometer (0- 255 MPH/kmh)

Tachometer (0- 9,990 RPM)

Oil Pressure (0-100 psi displayed in 1 psi increments)

Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)

Voltmeter (9- 17 VDC)

Fuel Level (0-99% full)

Lighting

Auto-contrasting LCD display for optimal view in the brightest of sunlight.

LED backlit at night to match/ complete the look at night.

Built-in Indicators

Indicators

Turn Signals (Left/ Right)

High Beam

Check Engine

Parking Brake

Cruise Control (On/ On & Engaged when vehicle is equipped)

Gear Position (Optional GSS-2000 sensor required)

4 x 4 (When vehicle is equipped)

Wait to Start (When vehicle is equipped)

Included Sensors

Water Temperature

1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator

Replaces GM style speedometer cables with a 10 ft harness.
(Tremec and Ford style adaptors available on request.)

Bushings

Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Calibration

Pushbutton

Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.

** Covered by a Limited Lifetime Warranty!

More Information
year make model	1970-1972 Chevy Chevell SS/Monte Carlo/El Camino and 1971 GMC Sprint
Manufacturer	DAKOTA DIGITAL
