Dakota Digital Series III instrument systems offer the latest technologies and features for your custom vehicle. High brightness vacuum fluorescent displays provide a lifetime of trouble free use while offering increased accuracy and features!
Includes Billet Aluminum dash housing to fit 1935-1937 Ford PickupÂ

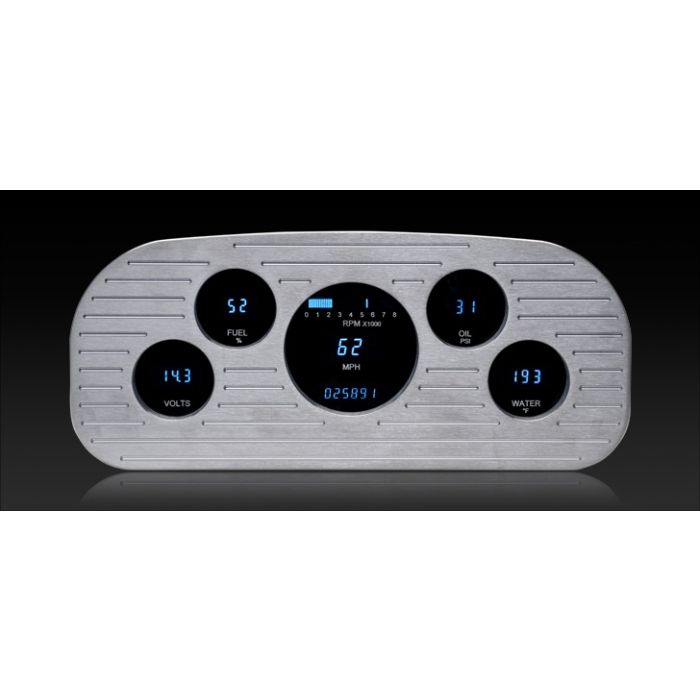

Dakota Digital VFD3-35F-PU Ford Pickup 1935-1937 Digital Instrument System
Â
Digital Gauges
SpeedometerÂ
 0 -255 MPH (optional metric version 0- 255 km/h)
Tachometer
 0- 17,500 RPM
Oil Pressure
 0- 99 psi
Water Temperature
 0- 300ºF (optional metric version 0- 150ºC)
Fuel Level
 0- 99%
Voltmeter
 8- 17 VDC
Standard Colors
 Blue or Teal
Digital Message Centers
Standard Displays
Odometer (One time user settable, Million Mile)
Dual (A/B) Trip Meter (0- 9,999.9)
Performance Meters
 0- 60 MPH Timer (0- 100 kmh)
 1/4 mile time
 1/4 mile end speed (trap speed)
 High speed recall
 High RPM recall
Gauges
 Speedometer (0- 255 MPH/kmh) opposite scale of main speedometer.
Built-in Indicators
Indicators
 Turn Signals (Left/ Right)
 High Beam
 Check Engine
 Parking Brake
 Cruise Control (On/ On & Engaged when vehicle is equipped)
 Gear Position (Optional GSS-2000 sensor required)
 4 x 4 (When vehicle is equipped)
 Wait to Start (When vehicle is equipped)
Included Sensors
Water Temperature
 1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure
 1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator
Replaces GMÂ style speedometer cables with a 10 ft harness. Â Â (Tremec and Ford style adaptors available on request.)
Bushings
Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm  and 16mm x 1.5 threads.
Calibration
Pushbutton
Dakota Digital instruments are programmed and operated by the push of a button. Simply  mount the included pushbuttons supplied with your gauges in a convenient and easily  accessible location. These buttons are used to calibrate your speedometer, set the  cylinder count and the fuel level gauge. Once properly configured these same buttons are  used to access the wealth of information located in the Digital Message Centers
More Information
year make model
1935-1937 Ford Pickup
Manufacturer
DAKOTA DIGITAL
