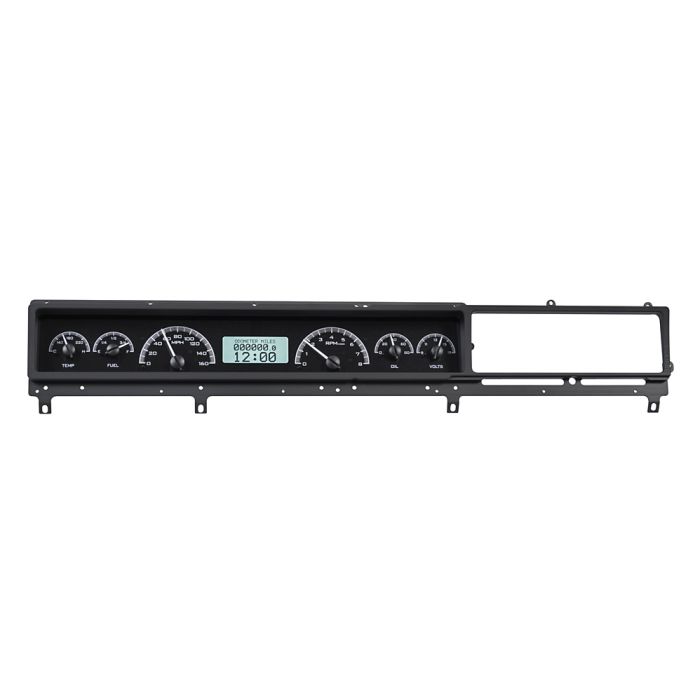

Dakota Digital VHX-66F-FAR-K-W Ford 1966-67 Fairlane Gauge System

Name: Dakota Digital VHX-66F-FAR-K-W Ford 1966-67 Fairlane Gauge System
SKU: VHX-66F-FAR-K-W
Price: 945.25 USD
Availability: InStock

Be the first to review this product

Special Price $945.25 Regular Price $995.00

SKU

VHX-66F-FAR-K-W

The VHX Series has completely revolutionized the instrumentation industry!

Dakota Digital VHX-66F-FAR-K-W Ford 1966-67 Fairlane Gauge System

IF YOU WANT SILVER ALLOY CHECK OUT OUR SITE FOR:

VHX-66F-FAR-S

Dakota Digital VHX-66F-FAR-K-W Ford 1966-67 Fairlane Gauge System

Ford’s answer to the Chevelle was the stout, boxy Fairlane. With as many as 427 cubes crammed under the hood, there was little that could touch the new-for ’66 mid-size.

If your dash is ripe for an upgrade, check out this direct-fit, six gauge system. It bolts into the stock 1966-67 bezel, replaces the original clear lens, and includes required sending units. Supplied aluminum plates allow for radio-delete, a stock shafted or a DIN radio (cut opening in blank plate). Choose from Black or Silver alloy face styling, with red, blue or white LED backlighting.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems. Completely engineered and manufactured at our facility in Sioux Falls, South Dakota.

* Bezel not included.

More Information

year make model

1966-1967 Ford Fairlane

Manufacturer

DAKOTA DIGITAL

More Info

Analog Gauges

Speedometer

·0 -160 MPH (optional metric version 0- 255 kmh)

Tachometer

·0- 8,000 RPM

Oil Pressure

·0- 80 psi

Water Temperature

·100- 260ºF (optional metric version 40- 120ºC)

Fuel Level

·E, 1/4, 1/2, 3/4, F

Voltmeter

·9- 17 VDC

Lighting

·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays

·Odometer (One time user settable, Million Mile)

·Dual (A/B) Trip Meter (0- 9,999.9)

·Clock (12 hour)

Performance Meters

·0- 60 MPH Timer (0- 100 kmh)

·1/4 mile time

·1/4 mile end speed (trap speed)

·High speed recall

·High RPM recall

Gauges

·Speedometer (0- 255 MPH/kmh)

·Tachometer (0- 9,900 RPM)

·Oil Pressure (0-100 psi displayed in 1 psi increments)

·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)

·Voltmeter (9- 17 VDC)

·Fuel Level (0-99% full)

Lighting

·Auto-contrasting LCD display for optimal view in the brightest of sunlight.

·LED backlit at night to match/ complete the look at night.

Built-in Indicators

Indicators

·Turn Signals (Left/ Right)

·High Beam

·Check Engine

·Parking Brake

·Cruise Control (On/ On & Engaged when vehicle is equipped)

·Gear Position (Optional GSS-3000 sensor required)

·4 x 4 (When vehicle is equipped)

·Wait to Start (When vehicle is equipped)

**Not all OEM indicator lamp functions will be replaced.

If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Included Sensors

Water Temperature

·1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

·1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator

·Replaces Ford and/ or GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required.

Bushings

·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimensions

5.5" x 3.5"x 1"

Calibration

Pushbutton

·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
