Dakota Digital VHX-68C-VET-C-B Corvette 1968-1977 Instrument Panel

The VHX Series has completely revolutionized the instrumentation industry!

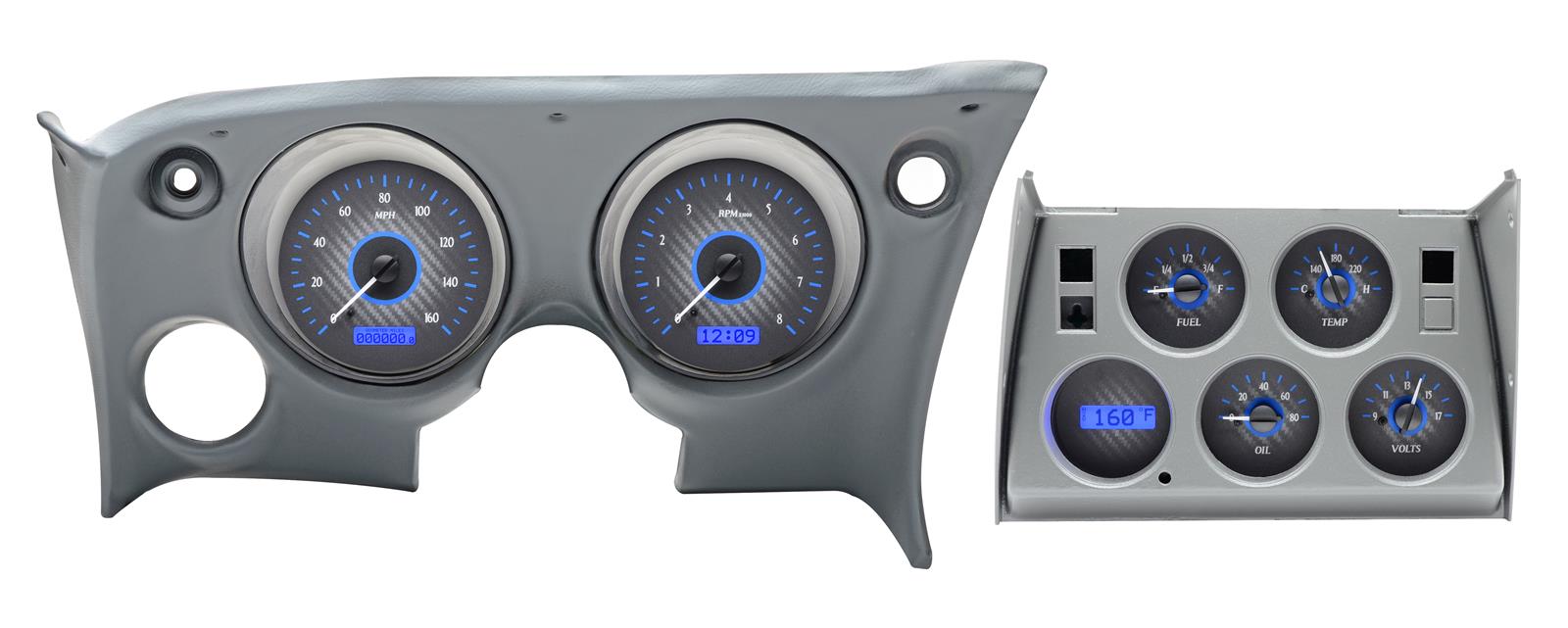

Dakota Digital VHX-68C-VET-C-B Corvette 1968-77 Instrument Panel

Driver information is paramount in a performance car with the brute-force engine options found in the ’68-77 Corvette!

Making use of the stock instrument bezels (not included), this package offers complete analog instrumentation with dual LCD message centers for a high-tech driving experience in a timeless classic. Take yours to the next level with this bolt-in instrument system with your choice of a third LCD message center (VET) or analog clock (VTA) in the fifth gauge opening.

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems.

CARBON FIBER/ BLUE LIGHTING

*Requires the use of factory bezels (gauge housings). Not Included.

More Information

year make model

1968-1977 Chevy Corvette

Manufacturer

DAKOTA DIGITAL

More Info

VHX-68C-VET Dimensions

Analog Gauges

Speedometer

·0 -160 MPH (optional metric version 0- 255 kmh)

Tachometer

·0- 8,000 RPM

Oil Pressure

·0- 80 psi

Water Temperature

·100- 260ºF (optional metric version 40- 120ºC)

Fuel Level

·E, 1/4, 1/2, 3/4, F

Voltmeter

·9- 17 VDC

Lighting

·Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.

Digital Message Centers

Standard Displays

·Odometer (One time user settable, Million Mile)

·Dual (A/B) Trip Meter (0- 9,999.9)

·Clock (12 hour)

Performance Meters

·0- 60 MPH Timer (0- 100 kmh)

·1/4 mile time

·1/4 mile end speed (trap speed)

·High speed recall

·High RPM recall

Gauges

·Speedometer (0- 255 MPH/kmh)

·Tachometer (0- 9,900 RPM)

·Oil Pressure (0-100 psi displayed in 1 psi increments)

·Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)

·Voltmeter (9- 17 VDC)

·Fuel Level (0-99% full)

Lighting

·Auto-contrasting LCD display for optimal view in the brightest of sunlight.

·LED backlit at night to match/ complete the look at night.

Built-in Indicators

Indicators

·Turn Signals (Left/ Right)

·High Beam

·Check Engine

·Parking Brake

·Cruise Control (On/ On & Engaged when vehicle is equipped)

·Gear Position (Optional GSS-3000 sensor required)

·4 x 4 (When vehicle is equipped)

·Wait to Start (When vehicle is equipped)

**Not all OEM indicator lamp functions will be replaced.

If additional indicators are desired within the new instrument system, consider repurposing any unused indicators to suit your application.

Included Sensors

Water Temperature

·1/8" NPT, ground isolated sensor with a 10 ft harness.

Oil Pressure

·1/8" NPT solid state sensor with a 10 ft harness.

Cable Driven Speed Sensor/ Generator

·Replaces GM style speedometer cables with a 10 ft harness. Sensor requires approximately 5" clearance extending between the cable drive output and any obstruction. Part # 130011 (sold separately) allows for relocation of the pulse generator when additional clearance is required. (Tremec and Ford style adaptors available on request.)

Bushings

·Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.

Control Box Dimensions

5.5" x 3.5"x 1"

Calibration

Pushbutton

·Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
