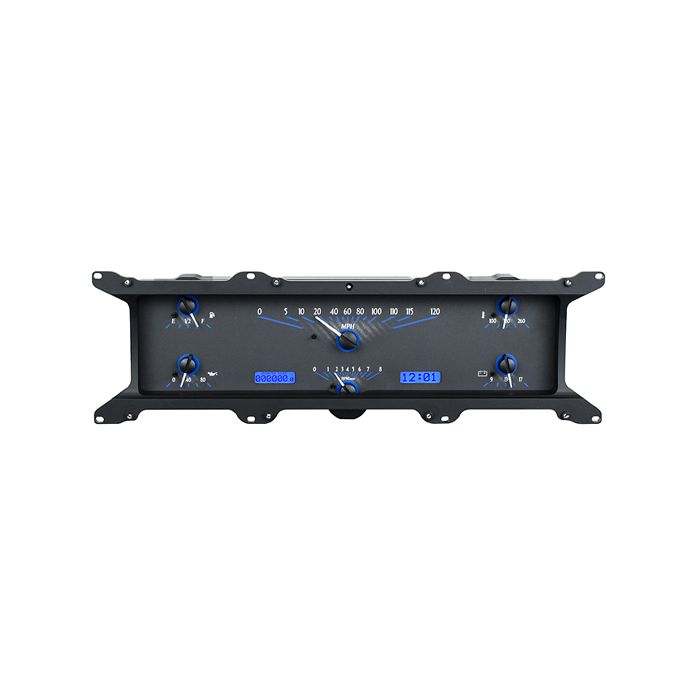

Dakota Digital VHX-67F-PU-C-B Ford Pickup 1967-1972 Gauge VHX System
The new VHX Systems fit directly into the stock instrument bezel of a 1967-1972 Ford Pickup without modification. Fits both styles of factory gauge bezel: earlier metal and later-model plastic.
1967-1972 Ford Pickup VHX System, Carbon Fiber/Blue
Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry.
VHX Instrument System Features!!!!
Displays included with this instrument system:
Speedometer: 0-120/140/160 MPH analog depending upon application, 0-255 MPH/KPH digitally in message center.
Tachometer: 0-8,000 analog, 0-9,990 digitally in message center.
Oil Pressure: 0-80psi analog and digitally.
Water Temp: 140-220°F analog, 0-300°F/ 0-150°C digitally in message center.
Voltmeter: 0-17VDC analog and digitally.
Fuel Level: Empty- Full analog. 0-99% digitally in message center.
Also shown in the digital message center:
Odometer
Trip Odometer (A&B)
Resettable Service Odometer
Clock
Hour-meter
0-60 MPH (0-100 KPH) timer
¼ mile timer
¼ mile speed display
High Speed recall
High RPM recall
Various Indicators can also be displayed such as:
Turn Signals
High Beam
Check Engine
Parking Brake
Cruise Control
4x4 (when equipped) displayed in message center.
Wait to Start (when equipped) displayed in message center.
Automatic Transmission gear indicator is also included which will display the full name (ie: Park, Overdrive, etc.) of the current gear. Utilizing the gear position indicator will require the use of a Dakota Digital GSS-2000 (sold separately) sending unit.
Dakota Digital instruments systems also include a Demonstration Mode which will cycle the instrument readouts while the vehicle is standing still. This is especially popular while the vehicle is on display at a show, event or simply displaying the instrument system.
Metric conversions will cycle between MPH or KPH in the digital message center with the press of a button.
Necessary sensors included for oil pressure (1/8” NPT), Water Temp (1/8" with bushings for 1/4", 3/8", 1/2” NPT as well 12mm and 16mm for GM & LS applications) and speedometerpulse generator.
Fuel level gauge can read either OEM sensor, or any aftermarket style currently available. A universal fuel level sender, SEN-06-1, can be purchased from Dakota Digital if necessary.
Fully programmable speedometer for various tire sizes, rear-end gearing combinations, etc.
Built-in illumination is activated as headlights/ parking lights are activated. The DIM-1 can be purchased from Dakota Digital to increase or decrease the brightness of the display. The DIM-1 is used in conjunction with your headlight switch
Fully adjustable warning points alert the user of potential vehicle problems in the digital message center
One-time user settable odometer. This is available only within the first 100 miles of operation. Once exceeded, the mileage can be reset by Dakota Digital at a charge of $20.
