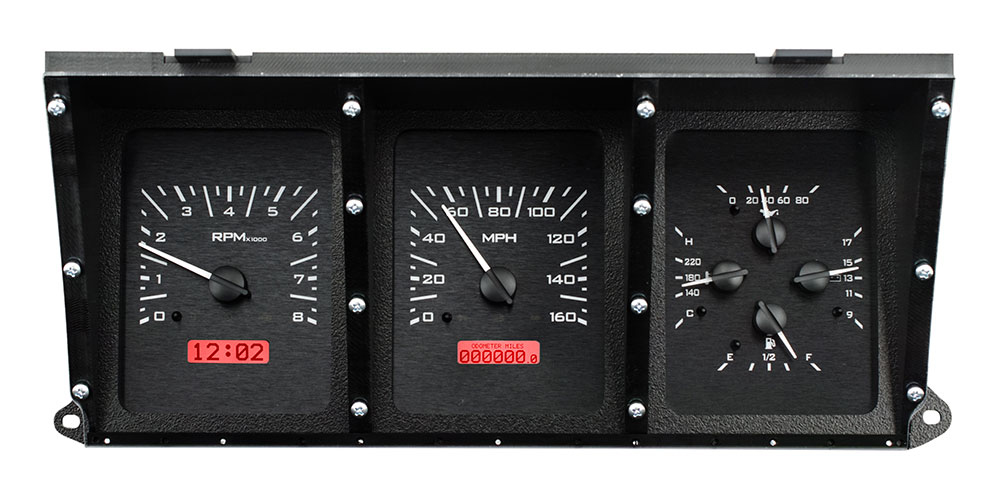

Fully lit needles, backlit faces, and highly visible LCD message centers are a few of the things that you can see which set the VHX Series apart from yesterday’s traditional approach to instrumentation. A few of the features which you don’t normally see are the micro-controlled precision stepper motors, solid state sensors for unparalleled accuracy, and user-customizable display feedback, all supported by an unrivaled limited lifetime warranty which has become the standard for Dakota Digital instrumentation systems . Completely engineered and manufactured at our facility in Sioux Falls, South Dakota, the VHX Series has completely revolutionized the instrumentation industry!
Â
Â
VHX Instrument System Features!!!!
Â
Analog Gauges
Speedometer
0 -120 MPH (optional metric version 0- 195 kmh)
Tachometer
0- 8,000 RPM
Oil Pressure
0- 80 psi
Water Temperature
100- 260ºF (optional metric version 40- 120ºC)
Fuel Level
E, 1/4, 1/2, 3/4, F
Voltmeter
9- 17 VDC
Lighting
Back lit technology is popular with performance instrumentation due to precise lighting allowing you see what is truly important when you really need it at a quick glance. Each number, tick mark, annunciator, needle, indicator and digital message center is lit by a series of LEDs behind the gauge face.Â
Water Temperature (100- 300ºF/ 40- 150ºC displayed in 1 ºF/ºC increments)
Voltmeter (9- 17 VDC)
Fuel Level (0-99% full)
Lighting
Auto-contrasting LCD display for optimal view in the brightest of sunlight.
LED backlit at night to match/ complete the look at night.
Built-in Indicators
Indicators
Turn Signals (Left/ Right)
High Beam
Check Engine
Parking Brake
Cruise Control (On/ On & Engaged when vehicle is equipped)
Gear Position (Optional GSS-2000 sensor required)
4 x 4 (When vehicle is equipped)
Wait to Start (When vehicle is equipped)
Included Sensors
Water Temperature
1/8" NPT, ground isolated sensor with a 10 ft harness.
Oil Pressure
1/8" NPT solid state sensor with a 10 ft harness.
Cable Driven Speed Sensor/ Generator
Replaces GMÂ style speedometer cables with a 10 ft harness. Â Â (Tremec and Ford style adaptors available on request.)
Bushings
Each kit comes with 1/8" to 1/4", 3/8" and 1/2" NPT bushings along with bushings for 12mm and 16mm x 1.5 threads.
Calibration
Pushbutton
Dakota Digital instruments are programmed and operated by the push of a button. Simply mount the included pushbuttons supplied with your gauges in a convenient and easily accessible location. These buttons are used to calibrate your speedometer, set the cylinder count and the fuel level gauge. Once properly configured these same buttons are used to access the wealth of information located in the Digital Message Centers.
