Tanks Inc Carb-Line-Kit for Carbureted Engines with Bypass Regulator
Tanks Inc Carb-Line-Kit Fuel Line Kit for Carbureted Engines with Bypass Regulator
This fuel line kit includes 25 feet of hose and most of the fittings that you need to connect a Tanks Inc. fuel pump to a carbureted engine (-6AN male carb adapter fitting is required at the carburetor). Â
This kit is not recommended for pumps that flow over 255 lph.  This is a return style fuel kit.  Regulator is adjustable in pressure from 5-10 PSI. Â
Â
Â
Black Twist-Lok Hose

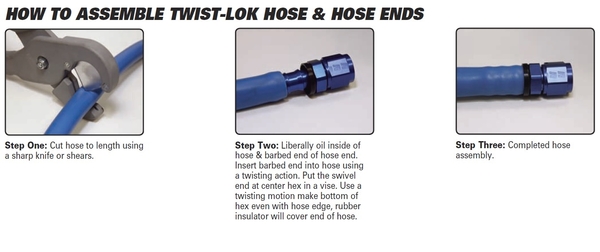

For the enthusiast looking for a quality performance hose while wanting to save assembly time and money, Russell Twist-Lok hose is the way to go. Flexible and lightweight, this hose is ideal for most automotive applications. Compatible with hydrocarbon and alcohol based fuel, lubricants and additives. Lightweight and flexible and works with all AN adapter fittings. Use with reusable twist-Lok hose ends with pressure rated up to 250 psi - suitable for most fuel and oil systems.
- #Â FF-10Â Â Fuel Filter
- #Â 640853Â (x2) Â Quick Disconnect Fittings for Fuel Filter
- #Â 660443Â (x2) Â 1/4" NPT to -6AN Fuel Pump Adapter Fittings
- # 624013 (x7)  Russell Straight -6AN Straight Twist-Lok Fittings
- #Â 624163Â Â Russell 90 Degree -6AN Twist-Lok Fitting
- # 634173 (25 feet)  Russell -6AN Black Twist-Lok Fuel Hose Â
- # 174053  Edelbrock Carbureted Bypass Fuel Regulator
- #Â R670840Â Â 6 O-Ring Boss to -6AN Adapter (Regulator Return Fitting)
- #Â R670650Â (x2)Â 10 O-Ring Boss to -6AN Adapter (Regulator Inlet/Outlet Fittings)
**Please note:Â the CARB-LINE-KITÂ will work with all tanks except the following:
UT-N Series, 48G, , 48-CG, 51-CG, 53-CG, 48-CGX, 51-CGX, and 53-CGX
The tanks listed above require the CARB-LINE-KIT45.  This kit has two 45 degree fittings instead of straight.  These tanks have a recessed bowl where the fuel pump is mounted.  The 45 degree fittings point up out of the bowl for easier accessibility.
Â
| year make model | Universal |
|---|---|
| Manufacturer | TANKS INC. |
